We are aluminum circle manufacturer in China and supply wide range of selection on aluminum circles’ size including customized shape and size.This can meet the demands of our ever-growing clientele.
Aluminum Circle for Utensils offered can be made available in different alloy series as well as in thickness options of 0.55 to 5.5mm and in diameters of 88mm to 950mm.

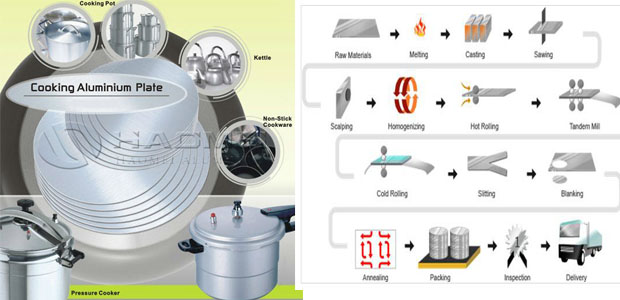

Product Process of aluminium circles for utensils:
Ingot/Master Alloys — Melting Furnace – Holding Furnace — D.C. Caster — Slab -Scalper — Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace — Final Inspection – Packing — Delivery.
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
1050 | 0.24 | 0.40 | 0.05 | 0.05 | 0.06 | / | / | 0.05 | / | 0.05 | 0.03 | 0.03 | 99.5 |
1060 | 0.25 | 0.36 | 0.05 | 0.03 | 0.02 | / | / | 0.05 | / | 0.05 | 0.03 | 0.03 | 99.6 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | / | / | 0.05 | / | 0.05 | 0.03 | 0.03 | 99.7 |
1100 | 0.95 | 0.94 | 0.05-0.2 | 0.06 | / | / | / | / | / | / | / | 0.05 | 99.0 |
3003 | 0.61 | 0.70 | 0.5-0.2 | 1.0-1.5 | / | / | / | / | / | / | / | 0.14 | 96.75 |
5052 | 0.40 | 0.40 | 0.10 | 0.11 | 2.2-2.8 | 0.15-0.35 | / | 0.10 | / | / | / | 0.14 |
Remain |
The aluminium circles for utensils features:
Excellent Surface Quality.
Excellent deep drawing and spinning quality.
Heavy gauge circles ideal for hard anodized cookware.
Anodizing Quality and Deep Drawing Quality which is suitable for cookware as well.
Well-Protected Packing.
It has light weight, high strength to weight ratio, corrosion resistance, electrical and thermal conductivity and no toxicity
Made available at competitive price
Excellent surface quality finish
Excellent deep drawing
We have strict and professional spinning aluminum circle procedures of production:
1> Before Producing :
Assurance of compliance the standard and material
According to customer's order;
Making production plan according to customer's order ;
Starting producing after receiving the payment from customer
2> Finished production :
Chemical test and Machanical test by our quality department,
Visual examination
Thickness measurment (Continous Ultrasonic)
Lenght dimension control.
Flatness,Straightness,Visual & Dimention check of edge
Weight control
Marking
3> checking before delivery :
Checking for packages
Certificate of compliance
Checking for Shiping mark and quantity
