5052 color coated aluminum coil in roofing and cladding system
5052 color coated aluminum coil belong to 5000 series aluminum alloy.This series color coated aluminum coil for roofing provided by HAOMEI aluminum includes 5005, 5052, 5754 series, etc. The 5052, 5005, 5083 and 5A05 series are representative series.
Color coated aluminum coil is aluminum coil after cleaning, coating, and baking. Surface of aluminum coil can be painted to any color. Color coated aluminum coil 3003/5052 thickness 0.5-3.5mm width 800-1400mm;5052 aluminum alloy is generally less expensive than 6061 aluminum alloy.
HAOMEI aluminum Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, can, home appliances board and embossed aluminum coil.
Especially,5052-H32 is optimal for sheet metal work because of its ability to allow for a tight radius while bending.only 5052-H32 has the properties suitable for the fabrication of formed electrical enclosures.
5052-H32 contains 2.5% magnesium. It is one of the highest strength alloys of the non-heat treatable grades. Common uses for this alloy include the manufacturing of electrical enclosures, marine parts, home appliances, food equipment, fuel tanks, storm shutters, refrigerators, aircraft tube, and fences.
As per types of surface coating of paint, color coated aluminum coils can be divided into (polyester) PE coated aluminum coil,( fluorocarbon) PVDF coating aluminum coil and Epoxy coated aluminum coil.
5052 color coated aluminum coil chemical composition |
||||||||||
Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Others | Al | |
single | total | |||||||||
0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.1 | 0.02-0.1 | 0.15-0.35 | 0.05 | 0.15 |
Balance |
According to the thickness of the coating, it can be divided into single-coated aluminum coil (4-20 microns); double-coated aluminum coil (25 to 28 micron) and triply-coated aluminum coil (35-38 micron).

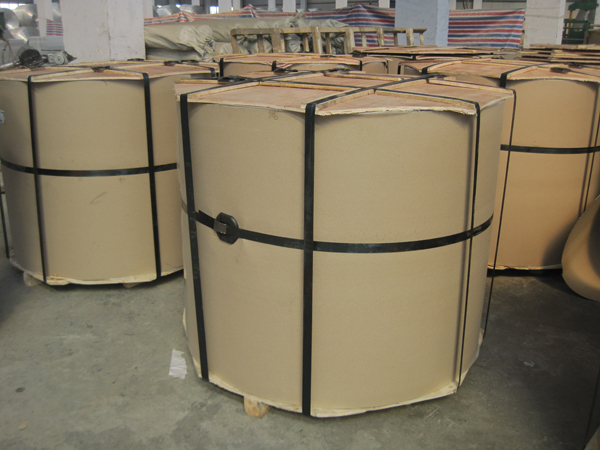

5052 color coated aluminum coil packaging easy to sky.
